Application Proxy (On-Premise iManage)

For those customers with an on-premises iManage system using Syncly cloud you must allow API access (https traffic on port 443).

Syncly can provide customers with their fixed IP address ranges of the service to allow customers to whitelist connectivity.

Customers can either;

• Provision direct, inbound, access using a combination of a DMZ/firewall
• Configure Azure AD Application proxy (more detail below)
• Configure third-party solutions such as Zero Trust Network Access (ZTNA) | Zero Trust | Cloudflare

Configuration of Azure Application Proxy

1. To begin you will need to download and install the Microsoft connector service component on a VM that has access to your On-Prem iManage server.
2. Once downloaded you can then log in to your Entra service and add a new enterprise application.

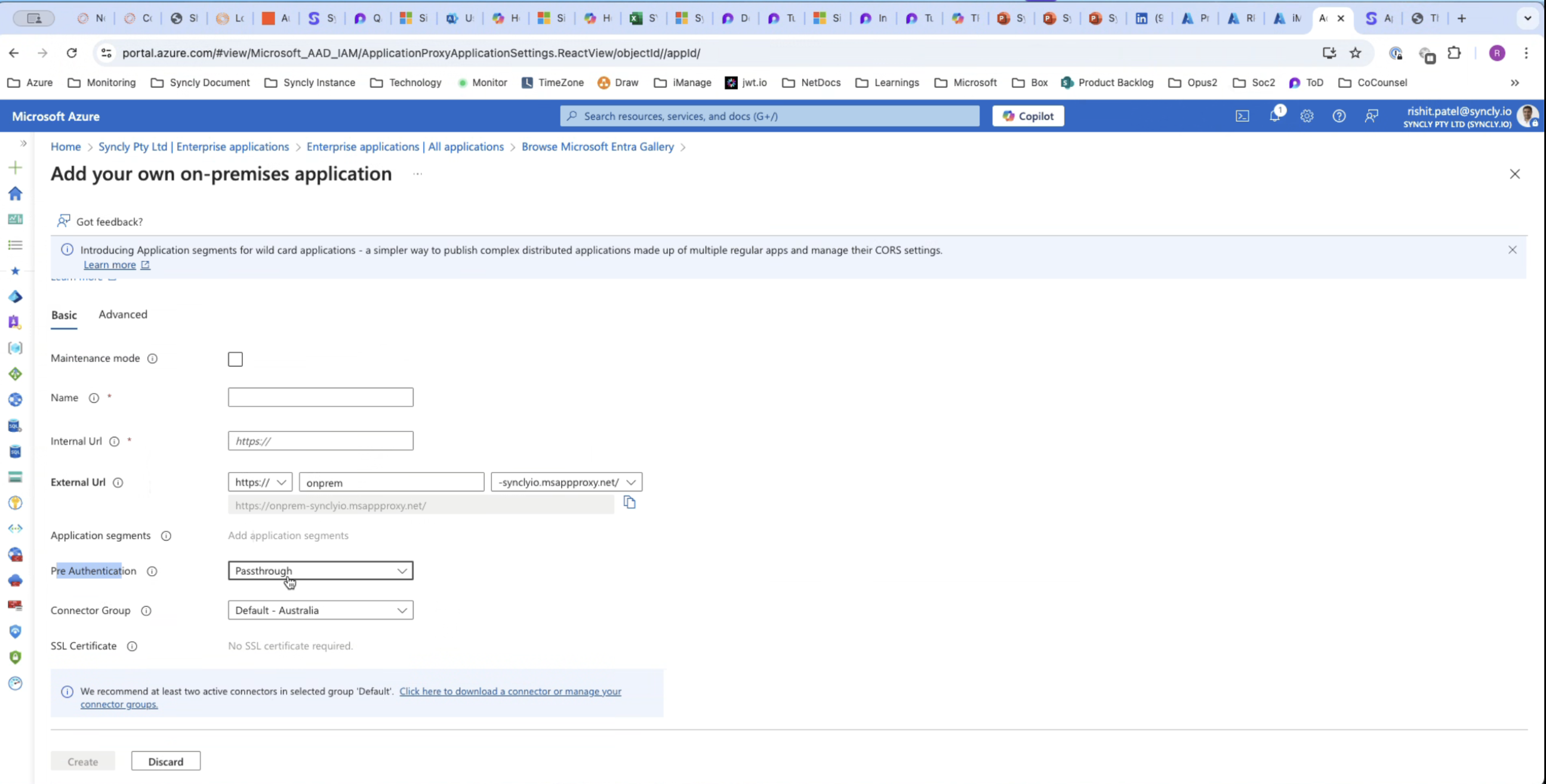

3. Internal URL is the URL of your on-prem iManage, External URL is the URL you will use in your Syncly configuration. Make sure to set Pre-authentication to Passthrough and if you have a connector group, assign it now.

Once created you can then configure the rest of the Syncly setup.

Below is some useful information around Azure Application Proxy setups.

https://learn.microsoft.com/en-us/entra/identity/app-proxy/application-proxy-add-on-premises-application

As an organisation we’ve spent the most time using Azure AD Application proxy which has some of the following benefits.

Azure AD Application Proxy

For iManage this must be configured with passthrough authentication for REST API traffic to flow through to the on-prem (utility) server.   The connector service will append the X-Forward-For header on the request (the Syncly service) and this can be used to allow/deny the request.

All access is outbound

ℹ️ You don't need to open inbound connections to the corporate network.

Application Proxy connectors only use outbound connections to the Azure AD Application Proxy service, which means that there is no need to open firewall ports for incoming connections.

Traditional proxies required a perimeter network (also known as DMZ, demilitarized zone, or screened subnet) and allowed access to unauthenticated connections at the network edge. This scenario required investments in web application firewall products to analyze traffic and protect the environment. With Application Proxy, you don't need a perimeter network because all connections are outbound and take place over a secure channel.

Traffic termination

ℹ️ All traffic is terminated in the cloud.

Because Azure AD Application Proxy is a reverse-proxy, all traffic to back-end applications is terminated at the service. The session can get reestablished only with the back-end server, which means that your back-end servers are not exposed to direct HTTP traffic. This configuration means that you are better protected from targeted attacks

Azure DDoS Protection Service

Applications published through Application Proxy are protected against Distributed Denial of Service (DDoS) attacks. This protection is managed by Microsoft and is automatically enabled in all our datacenters. The Azure DDoS protection service provides always-on traffic monitoring and real-time mitigation of common network-level attacks.

Automatic Updates

Azure AD provides automatic updates for all the connectors that you deploy. As long as the Application Proxy Connector Updater service is running, your connectors update with the latest major connector release automatically. If you don’t see the Connector Updater service on your server, you need to reinstall your connector to get any updates.

If you don't want to wait for an automatic update to come to your connector, you can do a manual upgrade. Go to the connector download page on the server where your connector is located and select Download. This process kicks off an upgrade for the local connector.

For tenants with multiple connectors, the automatic updates target one connector at a time in each group to prevent downtime in your environment.

You may experience downtime when your connector updates if:

• You only have one connector we recommend you install a second connector and create a connector group. This will avoid downtime and provide higher availability.
• A connector was in the middle of a transaction when the update began. Although the initial transaction is lost, your browser should automatically retry the operation or you can refresh your page. When the request is resent, the traffic is routed to a backup connector.

In some situations (like auditing, load balancing etc.), sharing the originating IP address of the external client with the on-premises environment is a requirement. To address the requirement, Azure AD Application Proxy connector adds the X-Forwarded-For header field with the originating client IP address (public) to the HTTP request. The appropriate network device (load balancer, firewall) or the web server or back-end application can then read and use the information.
